h-business-ui 使用文档

目前查询条件有：

文本框
下拉框
日期选择器
级联选择器

然后就是加了一部分插槽

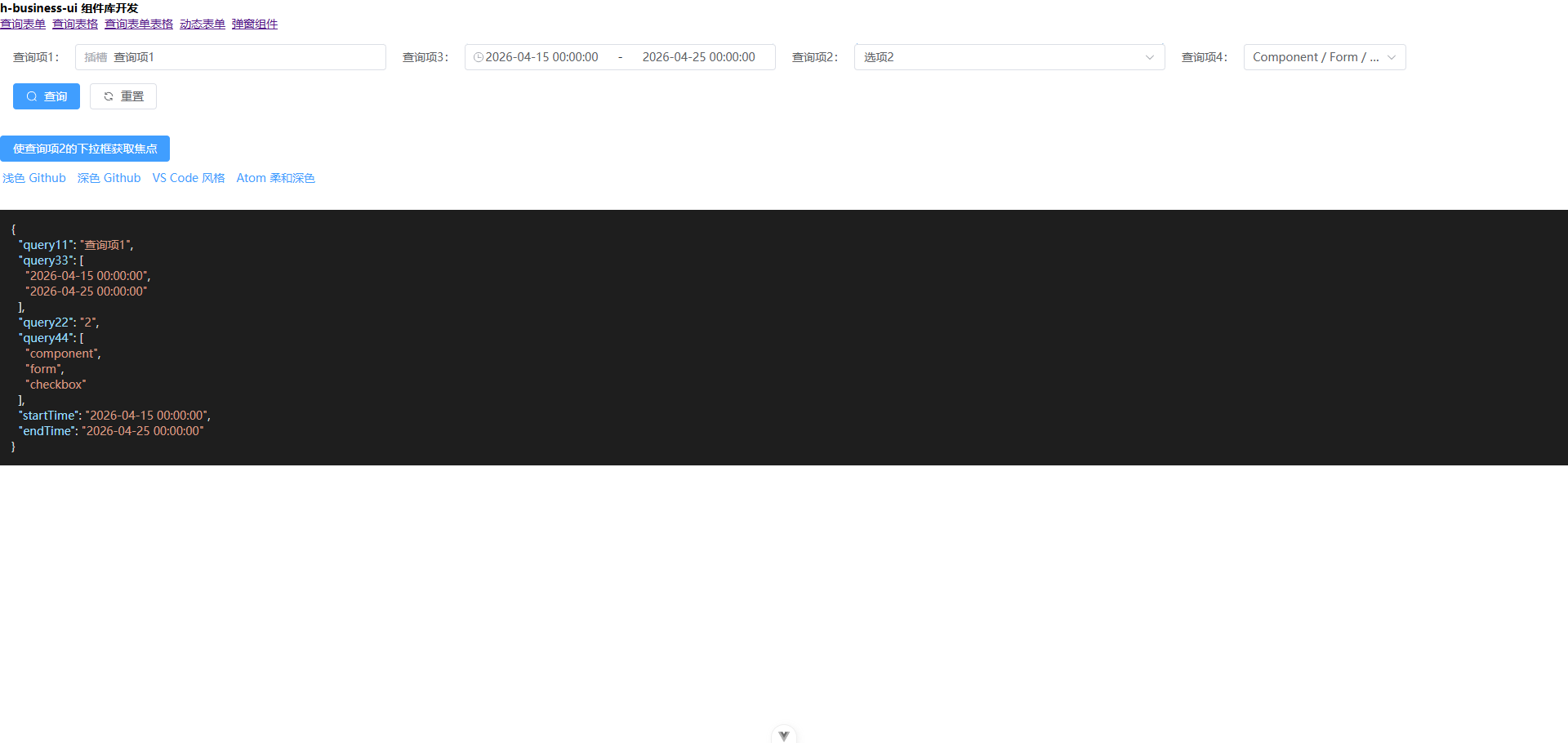

查询表单

vue

<template>
  <div>
    <!-- -->
    <QueryForm
      ref="queryFormRef"
      :columns="columns"
      :formatParams="formatParams"
      :showSearchReset="true"
      @onSearch="search"
      @onReset="reset">
        <template #searchIcon>
          <el-space>
            <el-icon>
              <Search />
            </el-icon>
            查询
          </el-space>
        </template>

        <template #resetIcon>
          <el-space>
            <el-icon>
              <Refresh />
            </el-icon>
            重置
          </el-space>
        </template>
      </QueryForm>

    <el-button type="primary" @click="getSelectValue">
      使查询项2的下拉框获取焦点
    </el-button>
  </div>
</template>

<script setup>
import { ref, h } from "vue";

// 查询表单实例
const queryFormRef = ref();

// 查询项2的下拉框选项
const query22Options = ref([
  {
    label: "选项1",
    value: "1",
  },
  {
    label: "选项2",
    value: "2",
  },
  {
    label: "选项3",
    value: "3",
  },
]);

const options = [
  {
    value: "guide",
    label: "Guide",
    children: [
      {
        value: "disciplines",
        label: "Disciplines",
        children: [
          {
            value: "consistency",
            label: "Consistency",
          },
          {
            value: "feedback",
            label: "Feedback",
          },
          {
            value: "efficiency",
            label: "Efficiency",
          },
          {
            value: "controllability",
            label: "Controllability",
          },
        ],
      },
      {
        value: "navigation",
        label: "Navigation",
        children: [
          {
            value: "side nav",
            label: "Side Navigation",
          },
          {
            value: "top nav",
            label: "Top Navigation",
          },
        ],
      },
    ],
  },
  {
    value: "component",
    label: "Component",
    children: [
      {
        value: "basic",
        label: "Basic",
        children: [
          {
            value: "layout",
            label: "Layout",
          },
          {
            value: "color",
            label: "Color",
          },
          {
            value: "typography",
            label: "Typography",
          },
          {
            value: "icon",
            label: "Icon",
          },
          {
            value: "button",
            label: "Button",
          },
        ],
      },
      {
        value: "form",
        label: "Form",
        children: [
          {
            value: "radio",
            label: "Radio",
          },
          {
            value: "checkbox",
            label: "Checkbox",
          },
          {
            value: "input",
            label: "Input",
          },
          {
            value: "input-number",
            label: "InputNumber",
          },
          {
            value: "select",
            label: "Select",
          },
          {
            value: "cascader",
            label: "Cascader",
          },
          {
            value: "switch",
            label: "Switch",
          },
          {
            value: "slider",
            label: "Slider",
          },
          {
            value: "time-picker",
            label: "TimePicker",
          },
          {
            value: "date-picker",
            label: "DatePicker",
          },
          {
            value: "datetime-picker",
            label: "DateTimePicker",
          },
          {
            value: "upload",
            label: "Upload",
          },
          {
            value: "rate",
            label: "Rate",
          },
          {
            value: "form",
            label: "Form",
          },
        ],
      },
      {
        value: "data",
        label: "Data",
        children: [
          {
            value: "table",
            label: "Table",
          },
          {
            value: "tag",
            label: "Tag",
          },
          {
            value: "progress",
            label: "Progress",
          },
          {
            value: "tree",
            label: "Tree",
          },
          {
            value: "pagination",
            label: "Pagination",
          },
          {
            value: "badge",
            label: "Badge",
          },
        ],
      },
      {
        value: "notice",
        label: "Notice",
        children: [
          {
            value: "alert",
            label: "Alert",
          },
          {
            value: "loading",
            label: "Loading",
          },
          {
            value: "message",
            label: "Message",
          },
          {
            value: "message-box",
            label: "MessageBox",
          },
          {
            value: "notification",
            label: "Notification",
          },
        ],
      },
      {
        value: "navigation",
        label: "Navigation",
        children: [
          {
            value: "menu",
            label: "Menu",
          },
          {
            value: "tabs",
            label: "Tabs",
          },
          {
            value: "breadcrumb",
            label: "Breadcrumb",
          },
          {
            value: "dropdown",
            label: "Dropdown",
          },
          {
            value: "steps",
            label: "Steps",
          },
        ],
      },
      {
        value: "others",
        label: "Others",
        children: [
          {
            value: "dialog",
            label: "Dialog",
          },
          {
            value: "tooltip",
            label: "Tooltip",
          },
          {
            value: "popover",
            label: "Popover",
          },
          {
            value: "card",
            label: "Card",
          },
          {
            value: "carousel",
            label: "Carousel",
          },
          {
            value: "collapse",
            label: "Collapse",
          },
        ],
      },
    ],
  },
  {
    value: "resource",
    label: "Resource",
    children: [
      {
        value: "axure",
        label: "Axure Components",
      },
      {
        value: "sketch",
        label: "Sketch Templates",
      },
      {
        value: "docs",
        label: "Design Documentation",
      },
    ],
  },
];

// 查询表单列配置
const columns = ref([
  {
    label: "查询项1",
    prop: "query11",
    comType: "input",
    slots: {
      prefix: () => h("div", {}, "插槽"),
    },
  },
  {
    label: "查询项3",
    prop: "query33",
    comType: "date",
    datePickerAttrs: {
      type: "datetimerange",
      valueFormat: "YYYY-MM-DD HH:mm:ss",
      format: "YYYY-MM-DD HH:mm:ss",
    },
    events: {
      change: (val) => {
        console.log(val);

        setTimeout(() => {
          query22Options.value.push({
            label: "选项4",
            value: "4",
          });
        }, 2000);
      },
    },
  },
  {
    label: "查询项2",
    prop: "query22",
    comType: "select",
    options: query22Options.value,
    selectAttrs: {
      filterable: true,
    },
    slots: {
      header: () => h("div", {}, "查询项2"),
    },
  },
  {
    label: "查询项4",
    prop: "query44",
    comType: "cascader",
    // slots: {
    //   default: (scope: { node: VNode; data: CascaderOption }) =>
    //     h("div", {}, [
    //       h("span", {}, scope.data.label),
    //       h("span", {}, scope.data.children?.length || ""),
    //     ]),

    //   header: () => h("div", {}, "查询项4"),

    //   footer: () => <div>{1}</div>,
    // },
    cascaderAttrs: {
      options,
    },
  },
]);

// 格式化查询参数
const formatParams = (params, type) => {
  if (type === "search") {
    if ((params.query33)?.length) {
      params.startTime = (params.query33)[0];
      params.endTime = (params.query33)[1];
    } else {
      delete params.startTime;
      delete params.endTime;
    }
  }

  if (type === "reset") {
    delete params.startTime;
    delete params.endTime;
  }

  return params;
};

// 查询
const search = (params) => {
  console.log("查询参数:", params);
};

// 重置
const reset = (params) => {
  console.log("重置参数:", params);
};

// 使指定的下拉框获得焦点
const getSelectValue = () => {
  const selectRef = queryFormRef.value?.getComponentRef("query22");
  if (selectRef) {
    console.log(selectRef);
    console.log(selectRef.focus());
  }
};
</script>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430

属性	类型	默认值	描述
`columns`	`Array`	`[]`	查询表单列配置,查看QueryFormColumn说明
`formatParams`	`Function`	`(params) => params`	格式化查询参数函数
`setDefaultValues`	`Function`	`() => {}`	设置默认值函数
`span`	`Number`	`6`	列数
`showSearchReset`	`Boolean`	`true`	是否显示查询重置按钮

QueryFormColumn说明

属性	类型	默认值	描述
`label`	`String`	`""`	列标签
`prop`	`String`	`""`	列属性名
`comType`	`String`	`可选值有：input，select，date, cascader`	组件类型
`placeholder`	`String`	`""`	占位符
`options`	`Array`	`[{ label: string, value: string }]`	下拉选项选项数组
`optionAttrs`	`Object`	`{}`	下拉选项属性对象，与element-plus的下拉选项属性一致。查看
`inputAttrs`	`Object`	`{}`	输入框属性对象，与element-plus的输入框属性一致。查看
`selectAttrs`	`Object`	`{}`	下拉选择器属性对象，与element-plus的下拉选择器属性一致。查看
`cascaderAttrs`	`Object`	`{}`	级联选择器属性对象，与element-plus的级联选择器属性一致。查看
`datePickerAttrs`	`Object`	`{}`	日期选择器属性对象，与element-plus的日期选择器属性一致。查看
`events`	`Object`	`{}`	组件的事件对象，上述示例中有
`slots`	`Object`	`{}`	组件的插槽对象，上述示例中有

事件名	参数	说明
`onSearch`	`params: Object`	查询事件，参数为查询参数
`onReset`	`params: Object`	重置事件，参数为重置参数

方法名	参数	返回值	描述
`search`	无	无	获取指定属性的组件实例
`reset`	无	无	重置查询表单
`getParams`	无	`Object`	获取查询参数
`getComponentRef`	`prop`	`Component`	获取指定属性的组件实例

typescript

type comType = "input" | "select" | "date" | "cascader";

export interface QueryFormColumn {
  label: string;
  prop: string;
  comType: comType;
  placeholder?: string;
  options?: {
    label: string;
    value: string;
  }[];
  inputAttrs?: Record<string, unknown>;
  selectAttrs?: Record<string, unknown>;
  optionAttrs?: Record<string, unknown>;
  events?: Record<string, unknown>;
  datePickerAttrs?: Record<string, unknown>;
  cascaderAttrs?: Record<string, unknown>;
  slots?: Record<string, (scope: unknown) => VNode | JSX.Element> | undefined;
}

export type QueryType = "search" | "reset";

export interface Props {
  columns: QueryFormColumn[];
  setDefaultValues?: (form: Record<string, unknown>) => void;
  formatParams?: (
    params: Record<string, unknown>,
    type?: QueryType,
  ) => Record<string, unknown>;
  span?: number;
  showSearchReset?: boolean;
}

export interface QueryFormExpose {
  /** 查询 */
  search: () => void;

  /** 重置 */
  reset: () => void;

  /** 获取参数 */
  getParams: () => Record<string, unknown>;

  /** 获取每一项的组件实例 @param prop 组件的prop */
  getComponentRef: (prop: string) => unknown;
}

​

​

​

QueryFormColumn说明 ​

​

​

​
